About this item

More Durable Commercial and Industrial  LED High Bay Lights Glass model  2024 upgrade mould and upgrade LEDs, Perfect bay lighting for warehouse, workshops, exhibition hall, logistics center etc.

1. Super Bright＆ 80% Energy Saving led high bay light are use high brightness SMD3030 LED with total 140LM/W, energy saving up to 80% on your electricity bill. With high CRI>85. 5000K daylight provides clear and bright lighting effect.

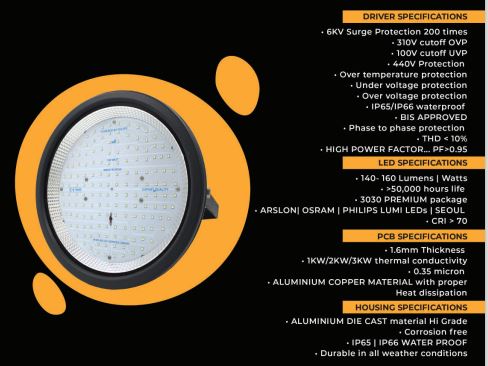

   《TECHNICAL SPECIFICATIONS》

   》DRIVER SPECIFICATIONS

   1. 6KV surge protection 200 times
   2. 310v cutoff OVP
   3. 100v cutoff UVP
   4. 440v protection
   5. Over temperature protection
   6. Under voltage protection
   7. Over voltage protection
   8. IP65/IP66 waterproof
   9. BIS APPROVED
   10. Phase to phase protection
   11. THD < 10%
   12. HIGH POWER FACTOR... PF>0.95

   》LED SPECIFICATIONS

   1. 140- 160 Lumens / watt
   2. >50,000 hours life
   3. 3030 PREMIUM package
   4. ARSLON/ OSRAM/ PHILIPS LUMILEDs/ SEOUL
   5. CRI > 70

   》PCB SPECIFICATIONS

   1. 1.6mm Thickness
   2. 1kw/2kw/3kw thermal conductivity
   3. 0.35 micron
   4. ALUMINIUM COPPER MATERIAL with proper Heat dissipation

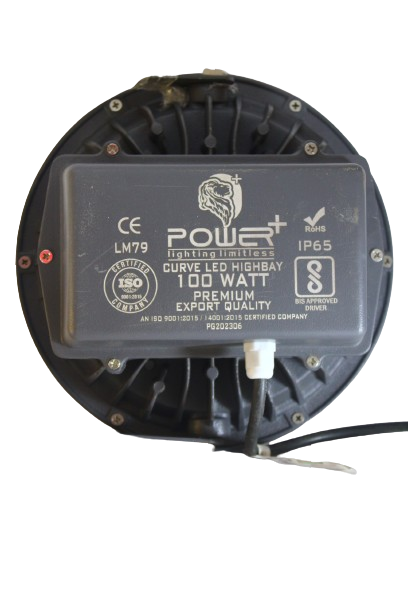

   》HOUSING SPECIFICATIONS

   ALUMINIUM DIE CAST material Hi Grade

   1.Housing Outer Size: 230mmx60mm

   2. Corrosion free
   3. IP65/ IP66 WATER PROOF
   4. Durable in all weather conditions

   • ✅2years warranty
     ✅3030 LED
     ✅6kva surge protection
     ✅High and Low voltage cut off
     ✅Ip66 waterproof
     ✅Brand: *POWER PLUS*
